Bimawen 16 Inch 2.5K 144Hz Portable Monitor 2560X1600 100 Adobe SRGB Display Game Screen For Laptop Mac Phone Xbox PS4/5 Switch

Add your review

223,97 €

SKU: 3256806541475544 Category: Tag:
  • Matrix color depth: 8 bit
  • Refresh rate sync technology: AMD FreeSync Pro
  • Screen surface: MATT
  • Bracket Type: Other
  • Screen curvature: NONE
  • High-Dynamic Range: HDR400
  • Display Size: 16 inch
  • Refresh Rate: 144Hz
  • Plug Type: EU Plug
  • Vertical Viewing Angle: 178°
  • Screen Type: LED
  • Horizontal Viewing Angle: 178°
  • Contrast Ratio: 1200:1
  • Black and White Response Time: 3 ms
  • Feature: USB Port,Speaker,Gaming
  • Application: Laptop
  • Pixel Pitch: 0.249mm
  • Response Time: 2ms
  • Panel Type: IPS
  • Products Status: STOCK
  • Contrast Ratio: 1200:1
  • Interface Type: HDMI-compatible
  • Brightness: 500cd/m
  • Display Ratio: 16:10
  • Display Size: 16inch
  • Resolution: 2560 x 1600
  • Brand Name: Bimawen
  • Origin: Mainland China
  • Certification: CE,FCC,RoHS,KC



• High Refresh Rate of 144Hz :Enjoy smooth and seamless visuals with a high refresh rate of 144Hz, perfect for gaming and fast-paced action scenes.

• Wide Display Size of 16 Inches :Immerse yourself in a wider viewing experience with a display size of 16 inches, providing more space for multitasking and productivity.

• High Contrast Ratio of 1200:1 :Experience deeper and more vivid colors with a high contrast ratio of 1200:1, enhancing the overall visual quality of the display.

• AMD FreeSync Pro Technology :Say goodbye to screen tearing and stuttering with AMD FreeSync Pro technology, synchronizing the monitor’s refresh rate with your graphics card for a seamless gaming experience.

Features:

QHD portable monitorthe monitor with 2.5K resolution which is equivalent to 2.5 times the resolution of 1080P, 100%sRGB and HDR technology, brings the ultimate visual experience, displays richer pictures and more complete colors.

It’s easy 144Hz high refresh rat.The 144H refresh rate,3ms Response Time and FreeSync technology provides ultra-high fluency perfectly and quickly, and there will be no stuttering and flickering when playing games,watching videos and working.

【Universal Compatibility】With a Mini HDMI port, 3.5mm headphone jack, and 2 full-featured USB-C port, the monitor is compatible with most devices, such as PC, Laptop, Mac, Surface, Phone, PS4, PS5, Xbox, NTD Switch, Raspberry Pi, Camera or other laptop/PC, phones, and tablets.

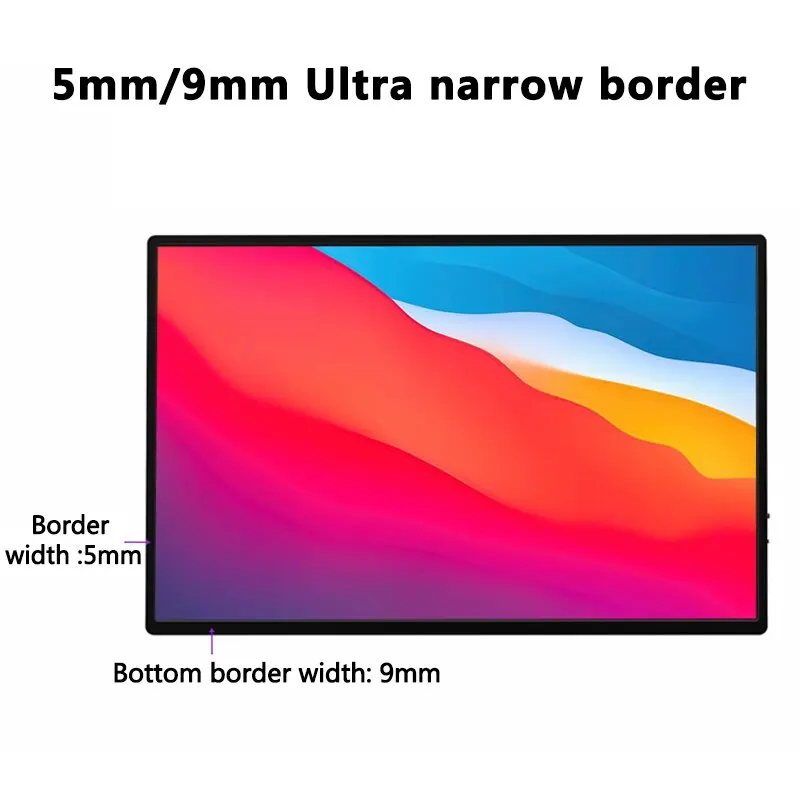

【Ultra thin and light body】The thickness of the monitor is only 9mm and the weight is only 728g. With ultra-narrow bezels, the left and right and top bezels are only 5mm, and the bottom bezel is only 9mm, making it easy to carry and not tiring.


Specifications

Model

160QC

Screen size

16 inch

Panel type

IPS

Resolution

2560*1600(2.5K)

Aspect ratio

16:10

Color Gamut

100% DCI-P3/100% sRGB

Displays Colours

1.07 billion

Color depth

8bit

Brightness

500cd/siding (Max)

Contrast

1200:1

Viewing angle

178°

Refresh rate

120Hz(HDMI)/144Hz(type-C)

Response time

3ms

HDR

support

Freesync

support

Appearance size

358mm*232mm*9mm

Weight

728g


Packing List

Monitor

*1

HDMI cable

*1

USB-C to USB-C Cable

*2

Power Adapter

*1

Protective case(optional)

*1

Foldable stand(optional)

*1

Manual

*1


Ports And Buttons

Mini HDMI Port

*1

Type C port

*2

3.5mm audio port

*1

OSD menu button

*1

Speakers

*2

Power button

*1








FQA

Q; To connect a computer with a fully functional Type-C connector

A; Supports laptops with Type c to Type c cable for connecting to a monitor, with a full-featured

Type-C connector for extended display or screen casting. Recommendation: When the power supply is insufficient, the brightness and volume cannot be

adjusted to the best, even causing the monitor to display abnormally or black screen, it is

recommended that an external power supply of 5V/3A or above is used.

Q; Connecting Type-C all-in-one phones

A; Connects to mobile phones with TV-out function

Support mobile phone with Type c to Type c one cable to connect to the monitor, support mobile

phone mode and computer mode after opening the cast screen.

When there is no external power supply, the phone’s battery powers the monitor. When there is an external power supply, the display charges the phone via the external

power supply in reverse. Recommendation: When the power supply is insufficient, the brightness and volume cannot be

adjusted to the best, even causing the monitor to display abnormally or black screen, it is

recommended that an external power supply of 5V/3A or above is used.

Q; To connect a computer device with an HDMI port

A;The portable monitor with mini HDMI interface is compatible with most HDMI devices. When connecting to a computer with HDMI interface, you need to connect the HDMI to

computer and use a Type c cable to connect to the USB port of the computer to power

monitor (some brands of computers may not have enough power supply from the USB port, so

an external charger of 5V/3A or above is required to power the monitor).

Q; Connections with HDMI gaming device

A; Connecting to Nintendo consoles

When an external power supply is connected, the monitor supports a standard Type-C to Type-C

cable to connect to the Switch console and switch SwitchTV mode. When connecting an external 5V power supply, the external power supply supplies the monitor. Switch needs internal battery to run programs, monitor output is 1080P.(original power supply)

When an external 15VPD protocol power supply is connected, the external power supply powers

both the monitor and the switch. The switch body’s battery is on charge and the display output is

1080p. Note: When connecting an external HDMI cable, be sure to connect the power cable first and

then the HDMI cable to ensure smooth signal transmission.

Display mode setting (For PC / Laptop)
1. Connect the monitor to the power adapter first.
2. Right click on your computer and select screen resolution (Windows 7/8) or display settings
(Window s10) or press the shortcut "windows+P" on your computer/laptop keyboard to enter
the settings.
3. Choose the display mode you need.
Refer to the picture below:

…

Duplicate Mode: Computer and monitor show the same surface.
…

Extend Display Mode: Computer and monitor can show different surfaces, you can operate
tasks on two screens independently. (eg., Deal with your work on the computer and play a video
on the monitor).
…

Single Display Mode: Display on only one screen on the computer/ or the monitor. [Under
this mode, it
‘

s a normal case that the monitor shows
"

No signal
"

if you choose to display only
on your computer. And the monitor will also show
"

No signal
"

in you next time use if you didn
‘
t change back display mode to Duplicate or Extend Mode when you exit last time.
Note: If you cannot see the additional monitor listed, click Detect.
If it does not work, try restarting your computer and do steps again.
You can also choose the display orientation on this surface.
If you cannot see the option of orientation on your laptop/PC, please check if your laptop/PC
has this function.
Refer to the picture below:

How to start a new task on your monitor under Extend Display Mode?
1. Drag the task which you want to do on the monitor to the RIGHT edge of the computer’s
screen with the mouse. When it skips out of the computer’s screen, the Mouse will show on
monitor. You can deal with the task on your monitor then.
2. Oppositely, if you need to move back to the computer with the Mouse, drag your Mouse
the LEFT edge of the monitor
‘

s screen, it will show on the computer
‘

s screen.
Note: You can only deal with ONE screen
‘

s task with your Mouse at the same time, either
computer or the monitor.
Operational notes
1.Both Type-C ports can be used as video input or movie input, however, they can’tbe used for the same function at the same time.(eg: if one Type-C port is used for charging, the other Type-C port is used for video input).

2.if the monitor needs to be connected to external power, please plug in the power
first and then connect the video cable. This is important for high quality and smooth
video signal transmission.

3.When no external power supply is connected to the laptop and monitor, the powersaving mode will be automatically turned on and the screen will be darker. Users canadjust the brightness according to their needs, and a low battery can cause themonitor to turn off or display inconsistently.
